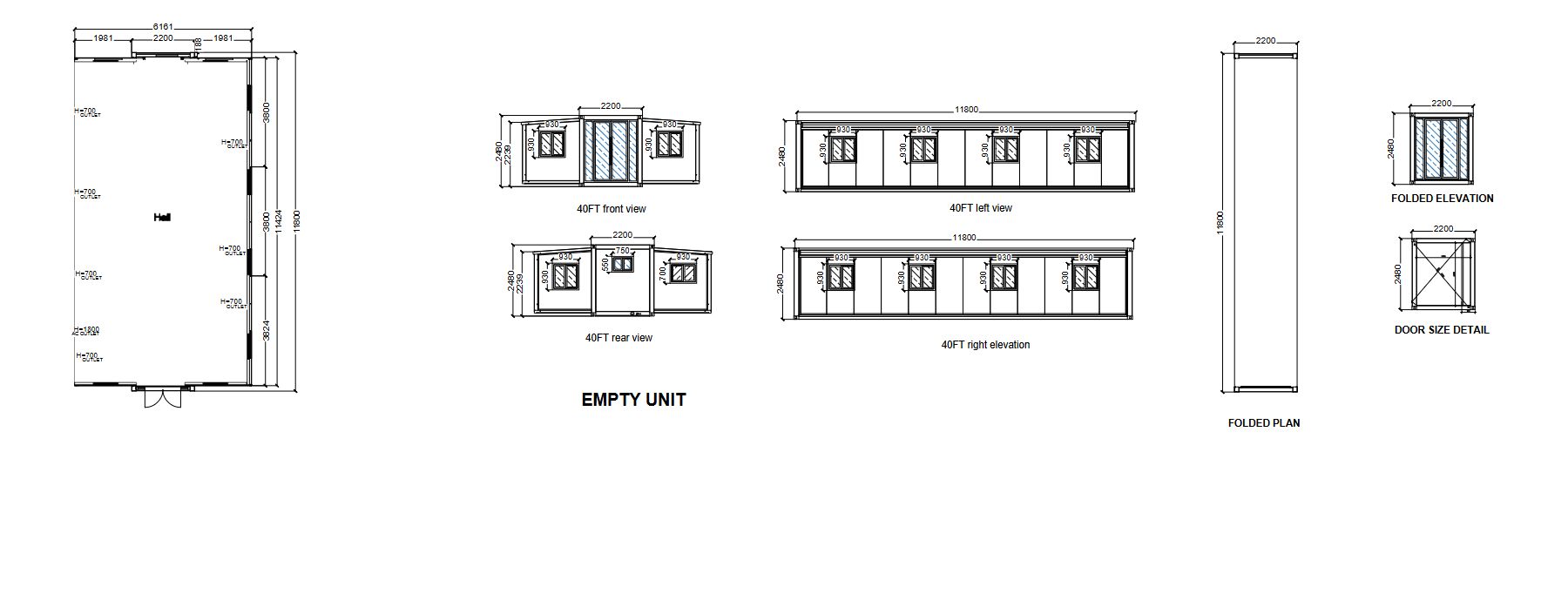

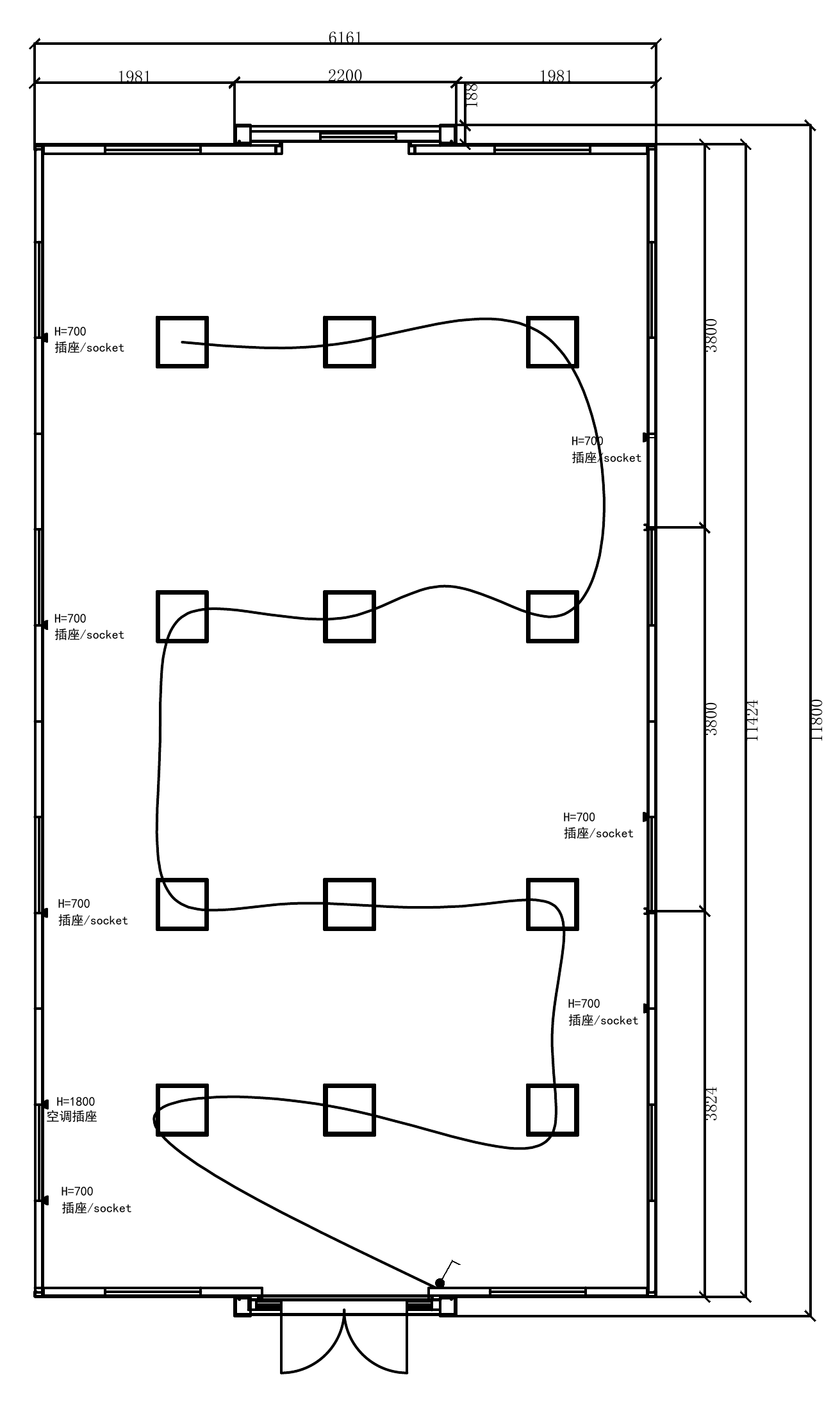

Layout 01 · Empty UnitFurnished top-down render

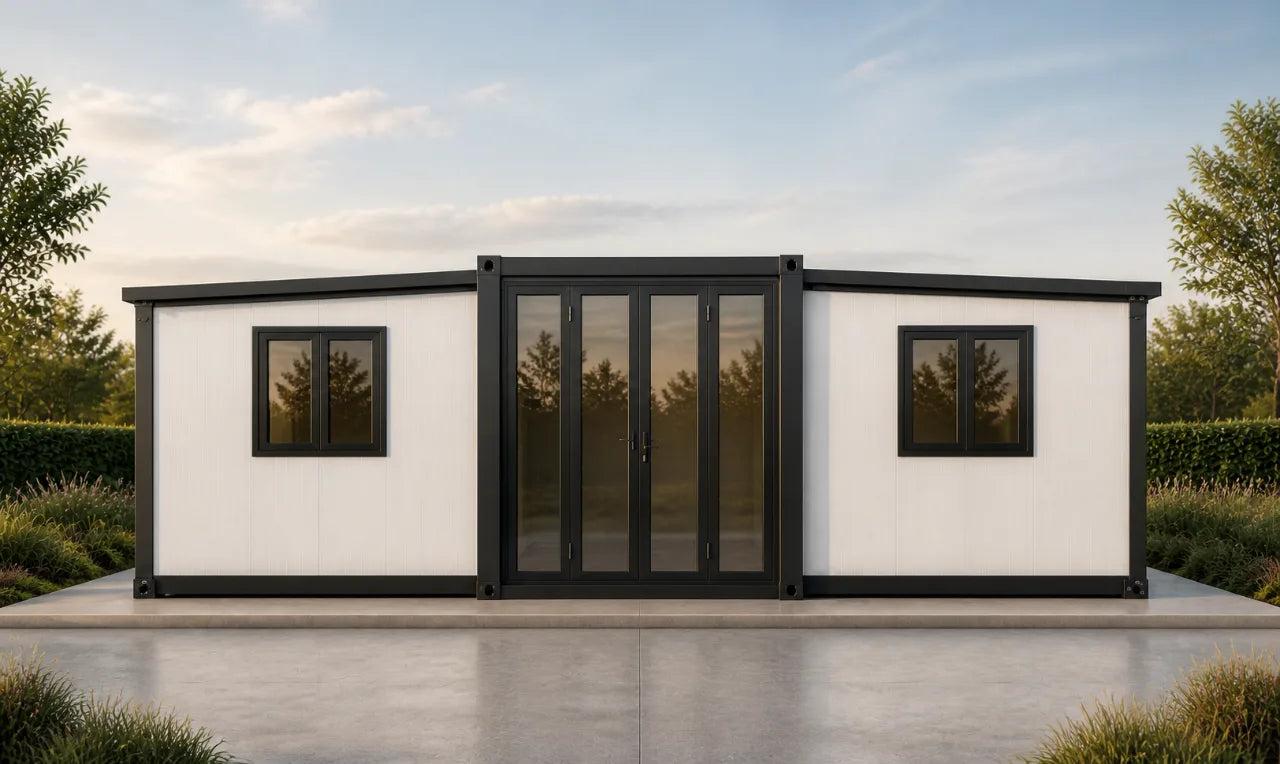

40FT Expandable Home
The largest expandable platform, with sixteen verified layouts and room for more ways to live.
Explore every view.

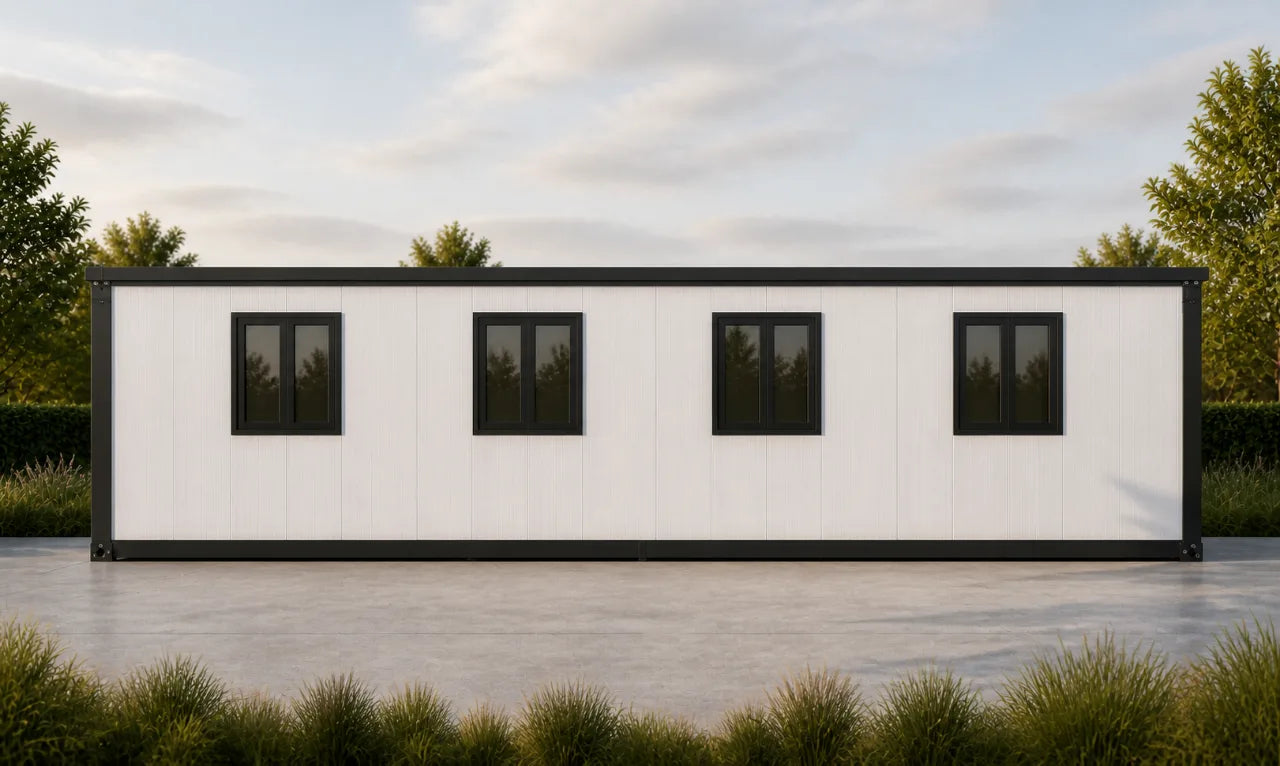

Exterior, interior, layout and transport references for the 40FT model.
Choose your layout.
Switch between each furnished render and its matching supplier drawing. Add more layout blocks in the theme editor.

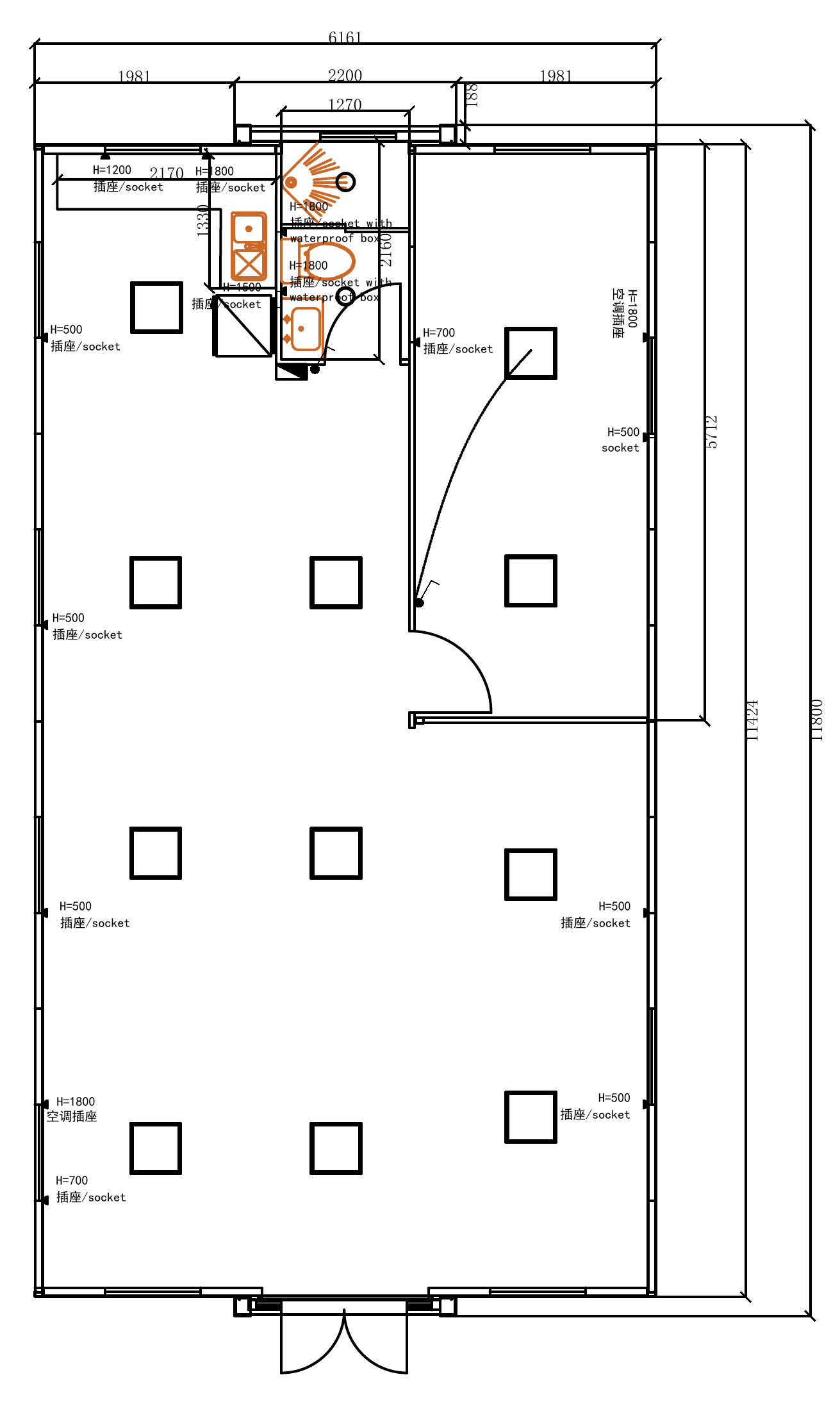

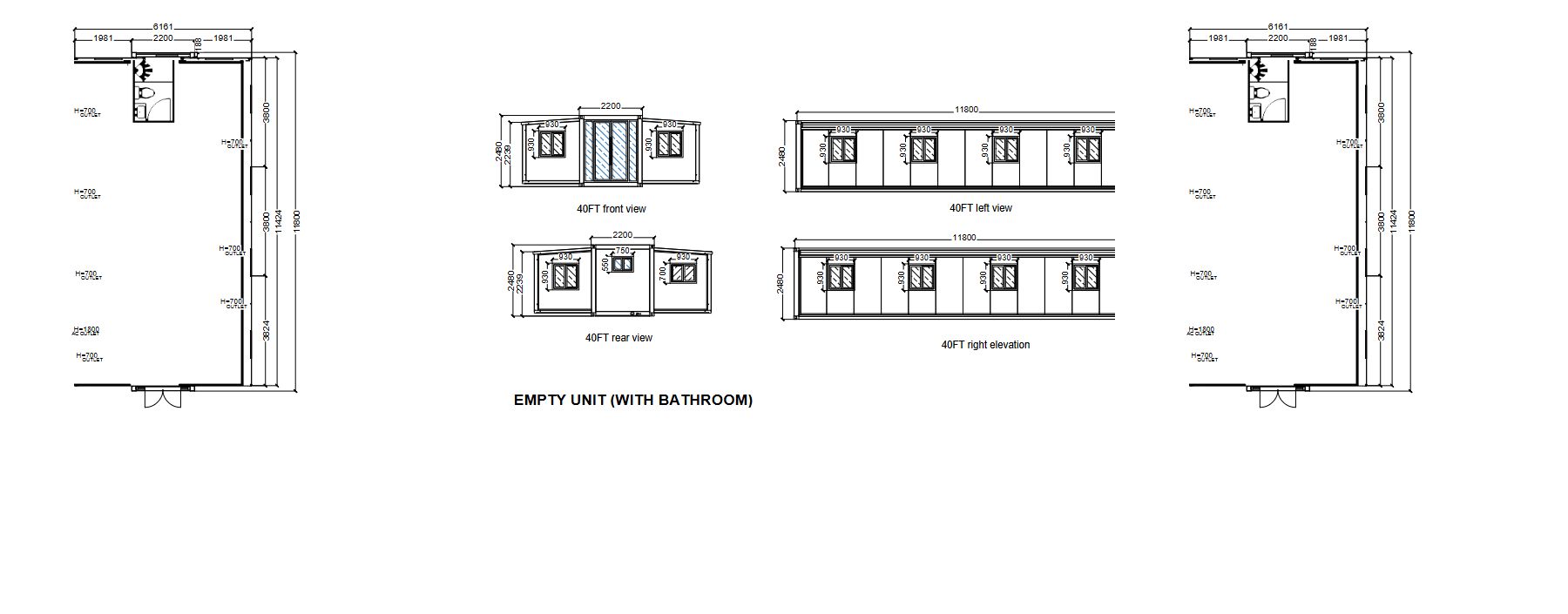

Layout 02 · 1 BedroomFurnished top-down render

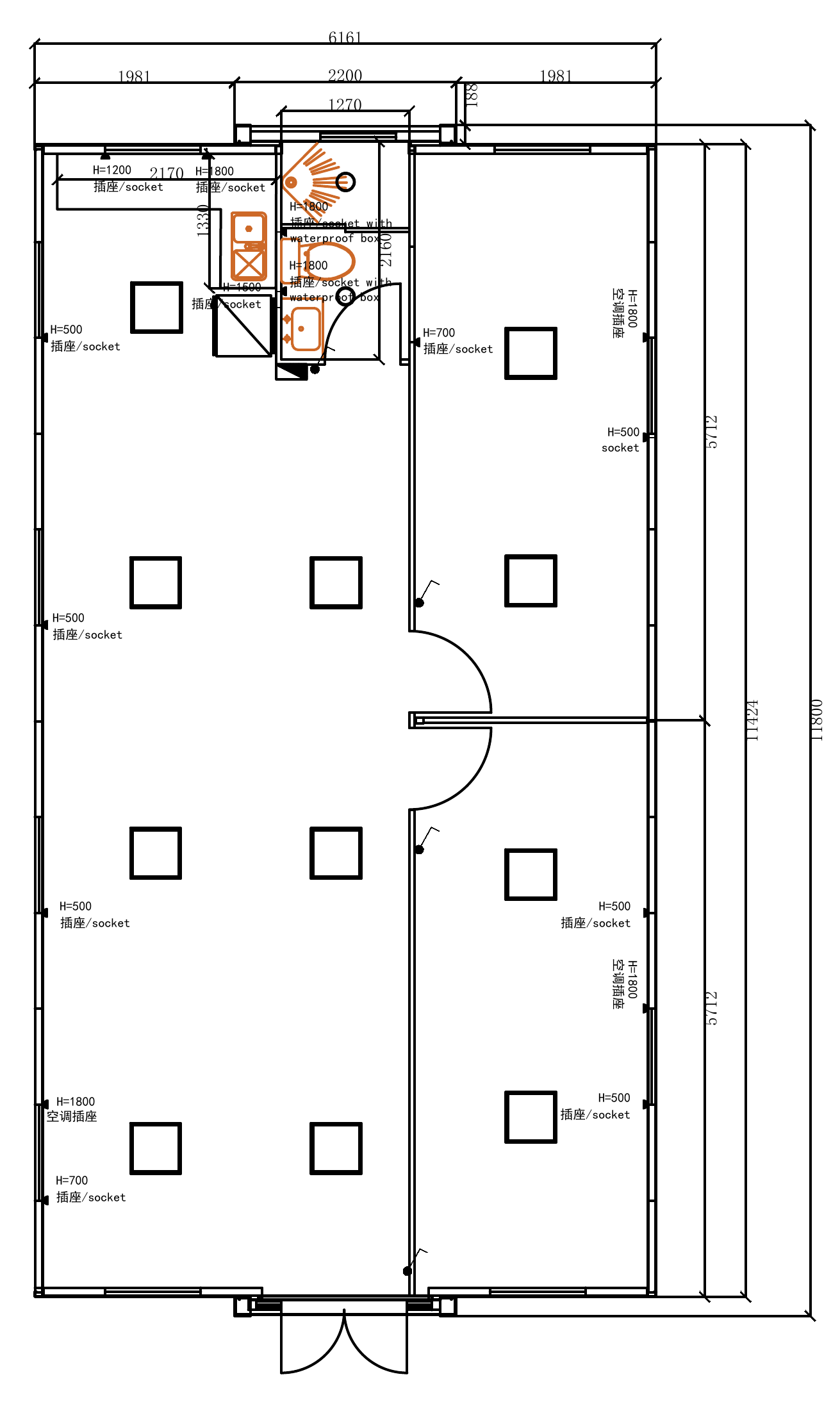

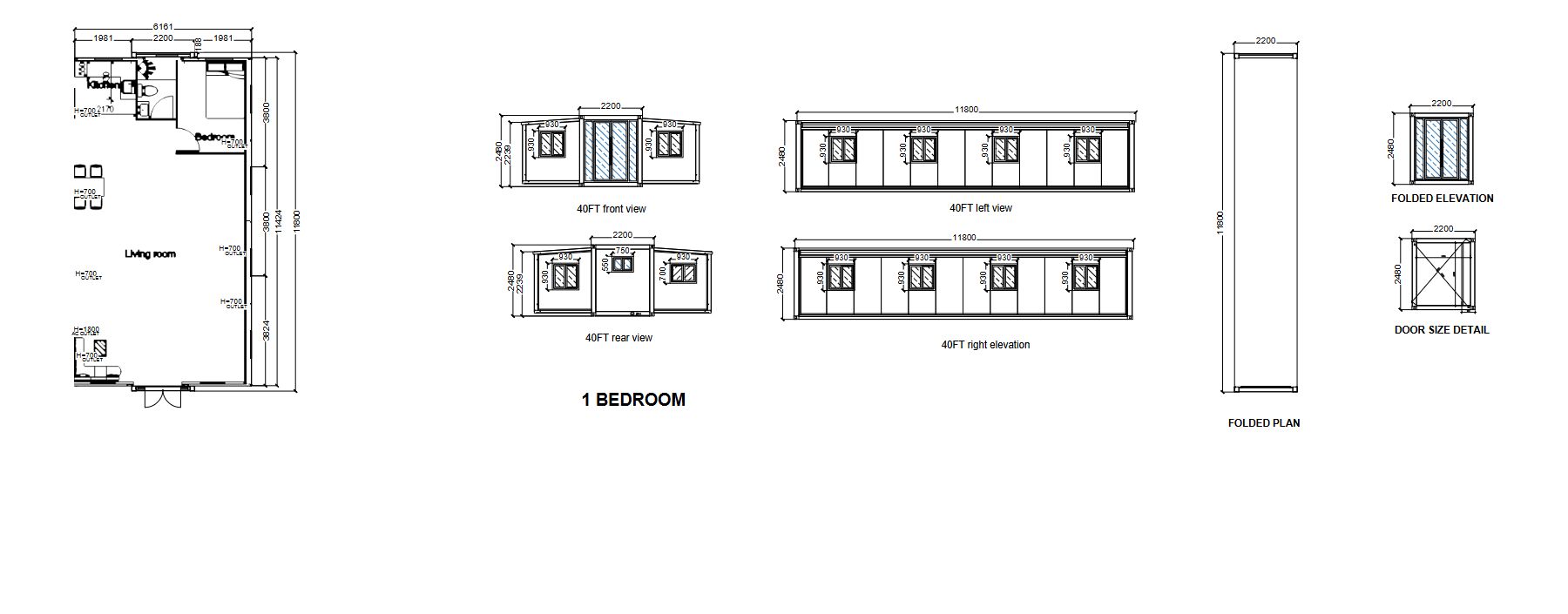

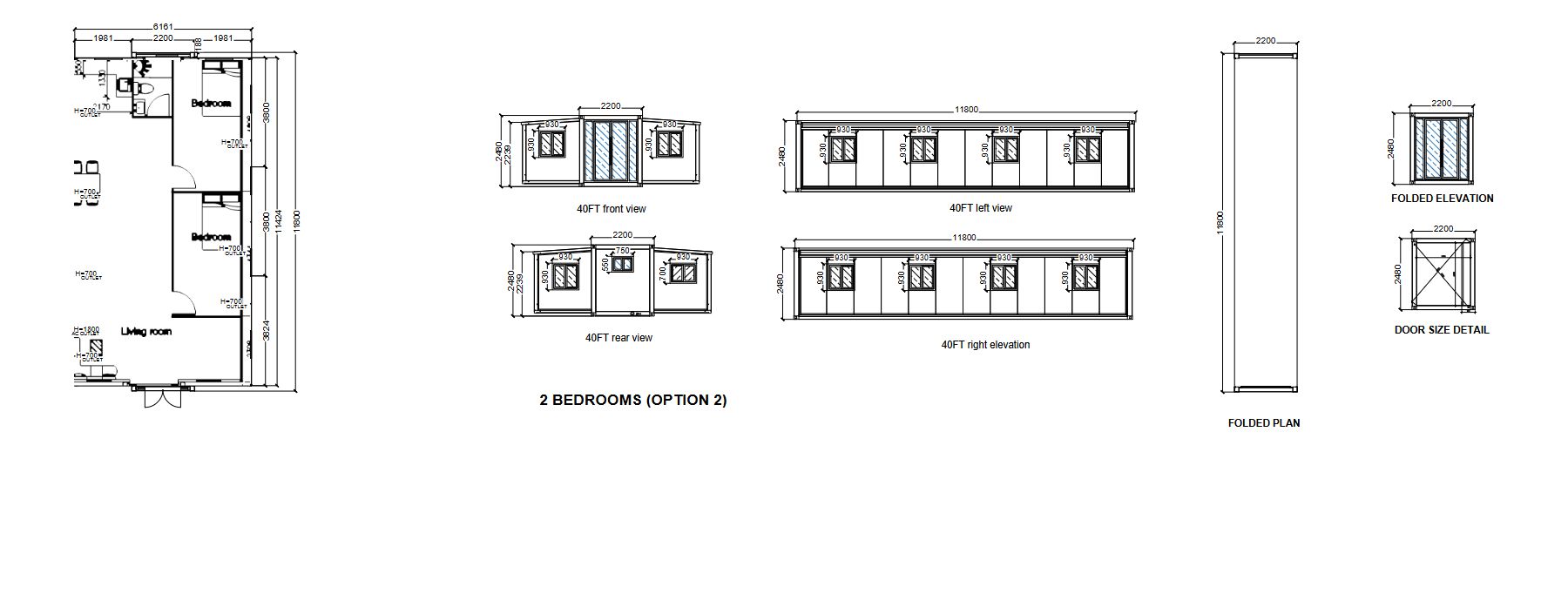

Layout 03 · 2 BedroomsFurnished top-down render

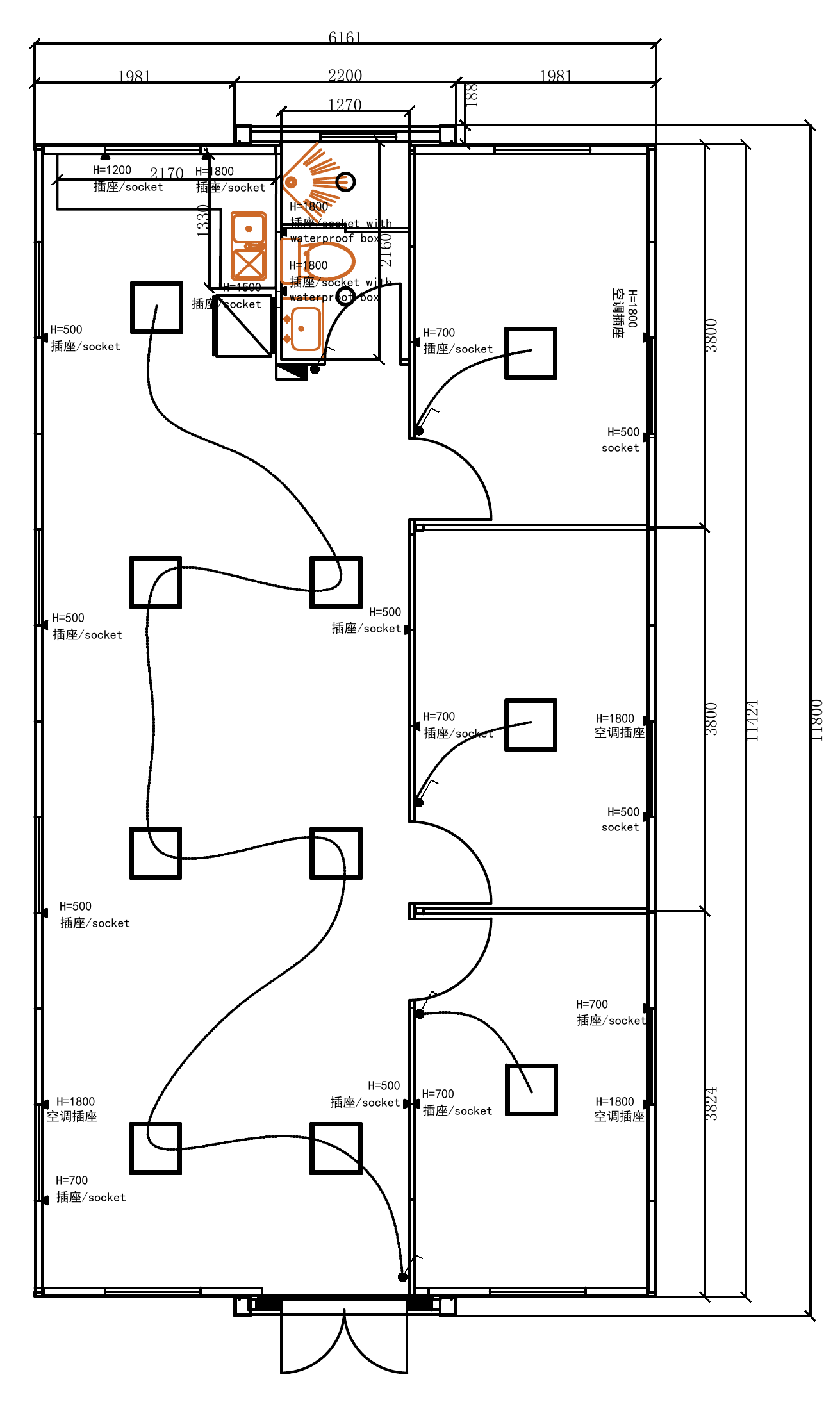

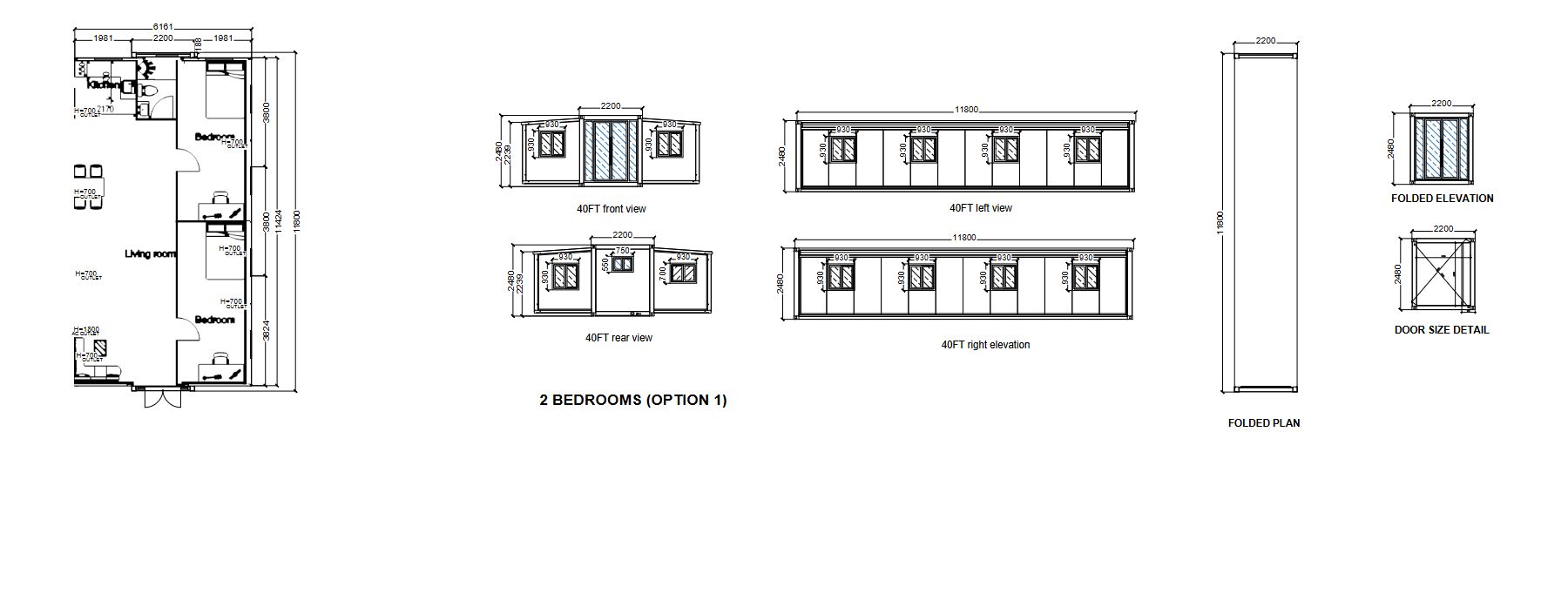

Layout 04 · 3 BedroomsFurnished top-down render

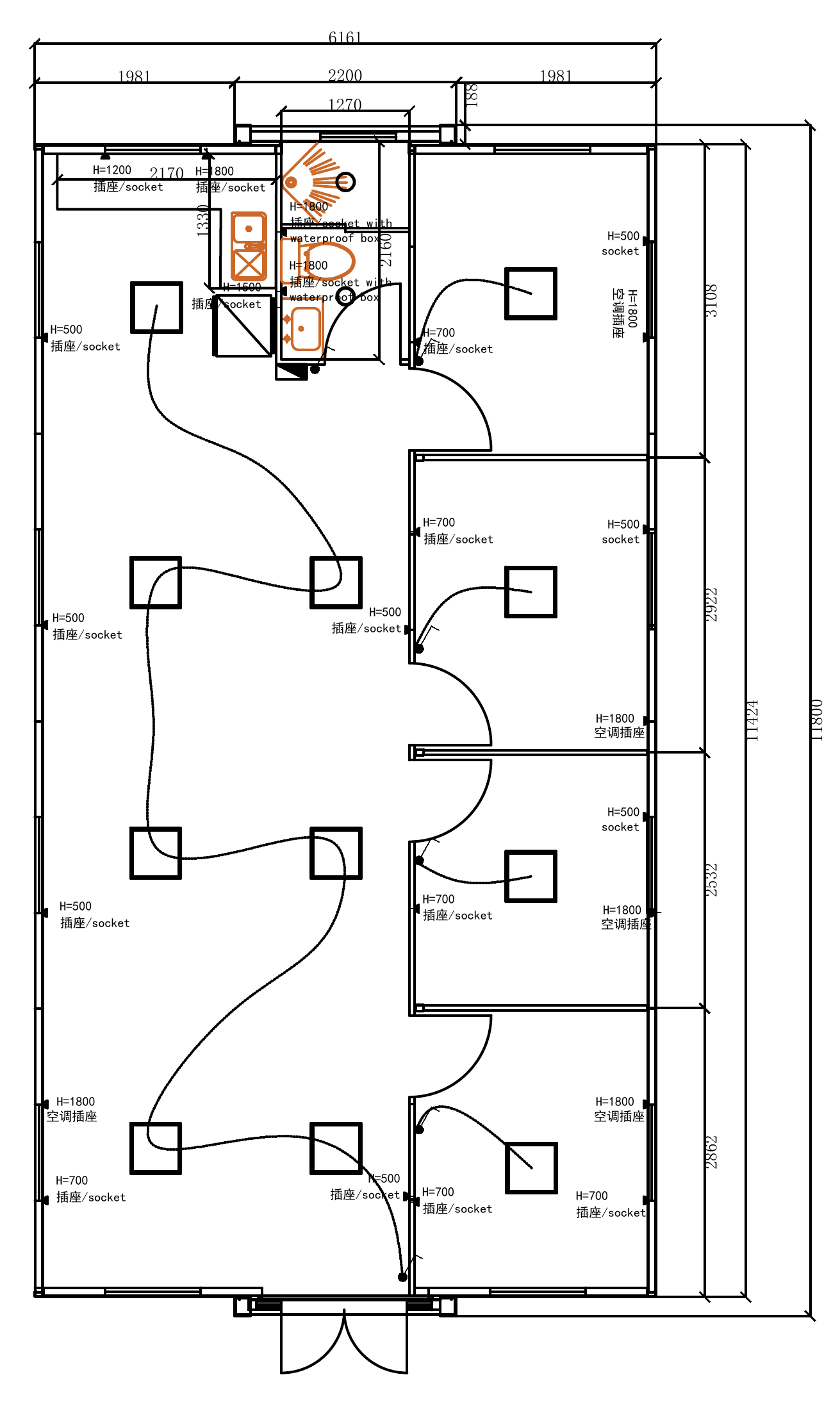

Layout 05 · 4 BedroomsFurnished top-down render
Configure your 40FT home.
Start with the standard specification, then choose upgrades, add-ons and finishes.
INCLUDED AS STANDARD
Standard home price available by quoteStandard specification
✓ Galvanised structural frame and expandable side-wing system✓ Insulated roof, wall and floor build-up✓ 18 mm structural floor boards with 2.0 mm PVC flooring✓ LED lighting, switches, sockets and distribution box
Upgrade options
Keep the standard selection or specify an upgrade.
Add to your home
Choose the inclusions that belong in your project scope.
Personalise your finishes
Final samples are confirmed with the project.
SPC colourLight Oak
Exterior colourMonument
Product details and project information.
Current supplier configuration for the 40FT flat-roof expandable home.
Technical specificationsAugust–October 2026 configuration
Expanded size
11800 × 6880 × 2560 mm.
Transport size
11800 × 2200 × 2456 mm.
Main floor & roof beams
80 × 100 × 2.5 mm galvanised steel sections.
Floor secondary members
80 × 40 × 2.0 mm galvanised rectangular tubes.
Roof & ceiling
V980 profiled waterproof roof sheet with EPS composite insulation panels.
External walls
75 mm EPS composite panels with coated steel skins.
Ready to configure a 40FT home?
Send the preferred layout, finish direction and site details for a project quote.
